Flexplate Drive Plate Removal on Acura?

Flexplate (Drive Plate)
REMOVAL & INSTALLATION

The details are described below :----

2001-02 Models

1. Remove the transmission.
2. Remove the eight drive plate bolts, then separate the drive plate from the crankshaft flange.

To install:

1. Install the drive plate. Tighten the bolts in the sequence shown to 54 ft. lbs. (74 Nm).
2. Install the transmission.



   Fig. Tighten the bolts to specifications in the sequence shown-2001-02 models

2003-06 Models

1. Remove the transmission assembly.

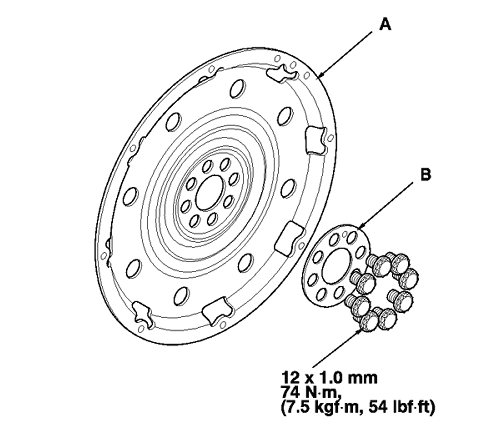

2. Remove the drive plate (A) and washer (B) from the engine.

To install:

1. Install the drive plate and washer on the engine crankshaft, and tighten the eight bolts in a crisscross pattern to 54 ft. lbs. (74 Nm)..
2. Install the transmission assembly.







   Fig. Tighten the bolts in a crisscross pattern to 54 ft. lbs. (74 Nm)-2003-06 models

This will help.

Thanks.
