How to replace Blower motor on Chevrolet Trailblazer, GM Envoy and Buick Rainer?


The Procedure is Exactly Similar for Chevy, Envoy & Buick car models.

Blower Motor
REMOVAL & INSTALLATION details are mentioned below:----

Body VIN Type 3
  1. Remove the HVAC module-auxiliary assembly.
  2. Disconnect the electrical connectors (4) from the blower motor-auxiliary (3).
  3. Remove the air outlet duct from the blower motor-auxiliary.
  4. Remove the screws (2,5) from the blower motor-auxiliary.
  5. Remove the blower motor-auxiliary (3).

    Fig. Exploded view of the auxiliary blower motor (3) and related components-body VIN type 3 shown
To install:
  1. Install the blower motor-auxiliary (3).
  2. Install the retaining screws (2,5) to the blower motor-auxiliary. Tighten the screws to 88 inch lbs. (10 Nm).
  3. Install the air outlet duct to the blower motor-auxiliary.
  4. Connect the electrical connectors (4) to the blower motor-auxiliary (3).
  5. Install the HVAC module assembly.
Body VIN Type 6
  1. Remove the right rear quarter trim panel.
  2. Remove the retaining bolts (5) from the HVAC module-auxiliary (1).
  3. Remove the retaining nuts (4) from the HVAC module-auxiliary (1) under the vehicle.

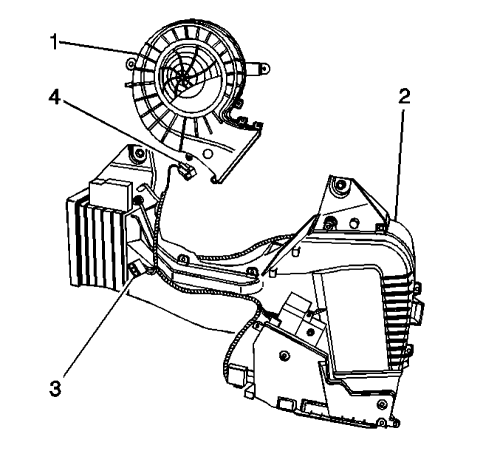

    Fig. View of the auxiliary blower motor (1), HVAC module (2) and related components-body VIN type 6 shown
  4. Disconnect the electrical connectors (3,4).
  5. Remove the blower motor screws.
  6. Remove the blower motor (1) from the HVAC module-auxiliary (2).
To install:
  1. Install the blower motor-auxiliary (1) to the HVAC module-auxiliary (2).
  2. Install the blower motor-auxiliary screws and tighten to 18 inch lbs. (2 Nm).
  3. Connect the electrical connectors (3,4).
  4. Install the retaining bolts (5) to the HVAC module-auxiliary.
  5. Tighten the HVAC module-auxiliary retaining bolts (5). Tighten the bolts to 88 inch lbs. (10 Nm).
  6. Install the retaining nuts (4) to the HVAC module-auxiliary (1) under the vehicle. Tighten the nuts to 88 inch lbs. (10 Nm).
  7. Install the right rear quarter trim.



These details will help.
Thanks.
